Every figure, side by side
Three of the four are bridge-type, which is what lets us take a 4.2 metre die on the table in one setting.
| Specification | Unit | AweaSP-2016 | SigmaSDV-4224-H | FeelerFV 1000 | HisionDB28L40 |
|---|---|---|---|---|---|
| Table | |||||
| Table size | mm | 2300 × 1500 | 4200 × 2200 | 1000 × 600 | 4200 × 2200 |
| Max table load | kg | 6000 | 17000 | 1300 | 18000 |
| Travels | |||||
| X travel | mm | 2100 | 4200 | 1100 | 4200 |
| Y travel | mm | 1600 | 2500 | 650 | 2800 |
| Z travel | mm | 750 | 1200 | 650 | 1300 |
| Spindle and control | |||||
| Spindle speed | rpm | 8000 | 6000 | 6000 | 6000 |
| Controller | Fanuc 18iMB | Fanuc 18iMB | Fanuc 0i MF | Mitsubishi M80 V | |
| Accuracy | |||||
| Positioning accuracy | micron | 20 | 30 | 10 | 20 |
AweaSP-2016
- Table size
- 2300 × 1500 mm
- Travels X / Y / Z
- 2100 / 1600 / 750 mm
- Max table load
- 6000 kg
- Spindle speed
- 8000 rpm
- Controller
- Fanuc 18iMB
- Accuracy
- 20 micron
SigmaSDV-4224-H
- Table size
- 4200 × 2200 mm
- Travels X / Y / Z
- 4200 / 2500 / 1200 mm
- Max table load
- 17000 kg
- Spindle speed
- 6000 rpm
- Controller
- Fanuc 18iMB
- Accuracy
- 30 micron
FeelerFV 1000
- Table size
- 1000 × 600 mm
- Travels X / Y / Z
- 1100 / 650 / 650 mm
- Max table load
- 1300 kg
- Spindle speed
- 6000 rpm
- Controller
- Fanuc 0i MF
- Accuracy
- 10 micron
HisionDB28L40
- Table size
- 4200 × 2200 mm
- Travels X / Y / Z
- 4200 / 2800 / 1300 mm
- Max table load
- 18000 kg
- Spindle speed
- 6000 rpm
- Controller
- Mitsubishi M80 V
- Accuracy
- 20 micron
Three of these are bridge-type centres. Accuracy figures are the positioning accuracy stated for each machine.
Our quality management system is certified to ISO 9001:2015, for the manufacturing and supply of precision machining components and toolings for automotive and non automotive industries. It is what the certificate covers: the way this shop is run, recorded and audited. It is not a product certificate and it does not certify the accuracy figures above, which are the positioning accuracy stated for each machine. The registration is held subject to surveillance audits.
Awea SP-2016
A bridge-type centre with a 2300 x 1500 mm table and the fastest spindle of the four at 8000 rpm. A higher spindle speed is what finishing passes want, so tooling that fits inside 2100 mm of X travel is usually cut here.
The table is rated to 6000 kg, the control is a Fanuc 18iMB, and positioning accuracy is 20 microns.
AweaSP-2016
- Table size
- 2300 × 1500 mm
- Travels X / Y / Z
- 2100 / 1600 / 750 mm
- Max table load
- 6000 kg
- Spindle speed
- 8000 rpm
- Controller
- Fanuc 18iMB
- Accuracy
- 20 micron

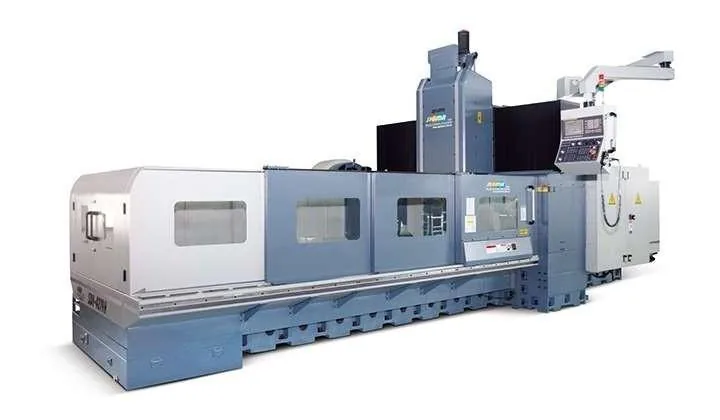

Sigma SDV-4224-H
A 4200 x 2200 mm table rated to 17000 kg. A four metre die or press tool goes down in one setting rather than being split and re-clamped, and 1200 mm of Z travel leaves room above a deep cavity.
Travels are 4200 mm in X and 2500 mm in Y, the spindle runs to 6000 rpm on a Fanuc 18iMB control, and positioning accuracy is 30 microns.
SigmaSDV-4224-H
- Table size
- 4200 × 2200 mm
- Travels X / Y / Z
- 4200 / 2500 / 1200 mm
- Max table load
- 17000 kg
- Spindle speed
- 6000 rpm
- Controller
- Fanuc 18iMB
- Accuracy
- 30 micron
Feeler FV 1000
The smallest table on the floor carries the tightest accuracy figure on it, 10 microns. Small, detailed work belongs here, where positioning accuracy matters more than table size.
The table is 1000 x 600 mm and rated to 1300 kg, travels are 1100 / 650 / 650 mm, the spindle runs to 6000 rpm, and the control is a Fanuc 0i MF.
There is no photograph of this machine in this section, and that is deliberate. We are not going to put a picture of a different machine here and let you assume. It is also the one centre of the four that is not listed as bridge-type.
FeelerFV 1000
- Table size
- 1000 × 600 mm
- Travels X / Y / Z
- 1100 / 650 / 650 mm
- Max table load
- 1300 kg
- Spindle speed
- 6000 rpm
- Controller
- Fanuc 0i MF
- Accuracy
- 10 micron

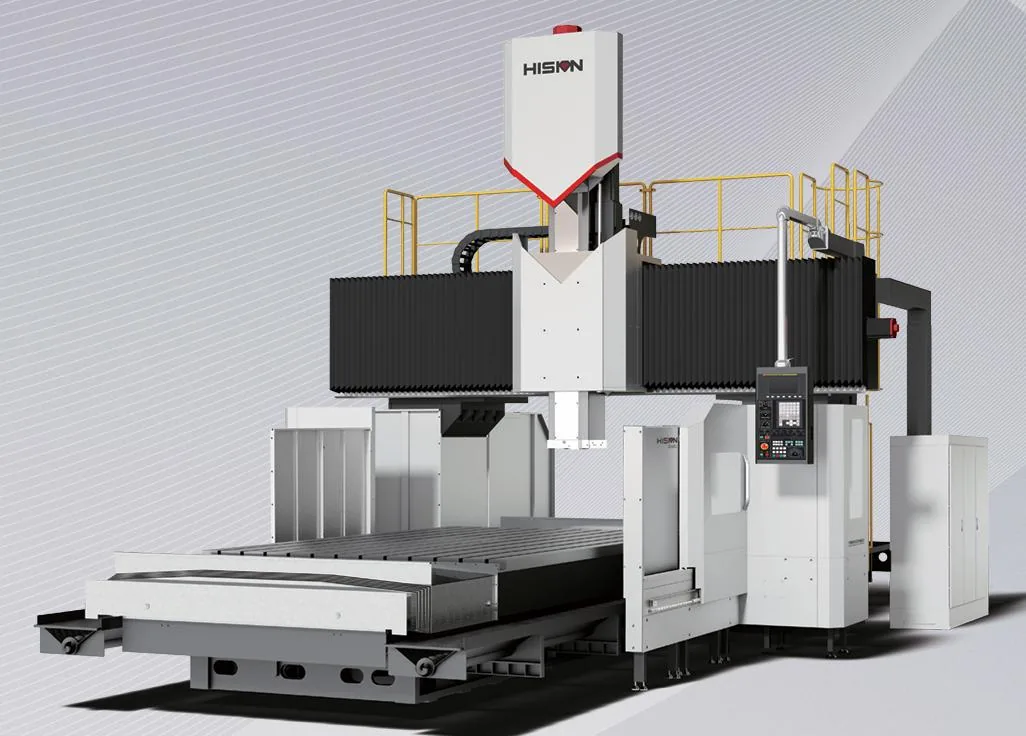

Hision DB28L40
The heaviest capacity on the floor. The table is rated to 18000 kg, Y travel runs to 2800 mm and Z to 1300 mm, so a tall, heavy block has room above it and support under it.
The table is 4200 x 2200 mm, X travel is 4200 mm, the spindle runs to 6000 rpm on a Mitsubishi M80 V control, and positioning accuracy is 20 microns.
HisionDB28L40
- Table size
- 4200 × 2200 mm
- Travels X / Y / Z
- 4200 / 2800 / 1300 mm
- Max table load
- 18000 kg
- Spindle speed
- 6000 rpm
- Controller
- Mitsubishi M80 V
- Accuracy
- 20 micron
What comes off them
The table above says what each machine can hold. These two came off those tables: a deep drawn die cavity finished to a mirror, and a multi station press tool on its pallet.
Both were photographed on our own floor as the tooling came off, so they look like a shop rather than a showroom. There are ten photographs of work off these machines on the work page.
